A DC transformer is a power electronic device used for DC voltage conversion, which can convert one DC voltage level to another DC voltage level. Unlike AC transformers, DC transformers cannot directly achieve voltage conversion through the principle of electromagnetic induction, but rely on power electronics technology to complete the regulation and transmission of DC voltage through high-frequency switching, transformer isolation and high-frequency rectification.

Working principle of DC transformer

High-frequency chopping: The input DC voltage is chopped into a high-frequency pulse signal through a high-frequency switch (such as MOSFET or IGBT).

Transformer isolation: The high-frequency pulse signal is electrically isolated and voltage converted through a high-frequency transformer for welding.

High-frequency rectification: The high-frequency AC signal output by the transformer is converted into a DC voltage through a rectifier circuit.

Filtering: The high-frequency component is removed through the filtering circuit to obtain a stable DC output voltage.

Characteristics of DC transformers

High efficiency: High-frequency switching technology is used, and energy loss is low.

High power density: small size, light weight, suitable for high-density integration.

Electrical isolation: The input and output are electrically isolated through the transformer to improve safety.

Soft switching technology: Reduce switching losses and improve system efficiency.

Multi-channel output: can be designed as a multi-winding structure to achieve multi-channel output.

Application fields of DC transformers

New energy field: used for DC voltage conversion in photovoltaic power generation, wind power generation and other systems.

Electric vehicles: in electric vehicle charging systems, realize the conversion of high-voltage DC to low-voltage DC.

Data centers: provide stable DC power for servers, storage devices, etc.

Aerospace: DC power distribution for aircraft, satellites and other equipment.

Industrial control: provide reliable DC power in industrial automation systems.

Technical advantages of DC transformers

High frequency: high-frequency switching technology makes the transformer smaller and more efficient.

Modular design: convenient for system expansion and maintenance.

Intelligent control: combined with digital control technology, accurate voltage regulation and protection functions are achieved.

High reliability: using advanced power electronic devices and protection circuits to improve system reliability.

Market prospects of DC transformers

With the rapid development of new energy, electric vehicles, data centers and other fields, the market demand for DC welding transformers continues to grow. In the future, DC welding transformers will develop in the direction of higher efficiency, higher power density and lower cost, and intelligent and modular design will become the mainstream trend.

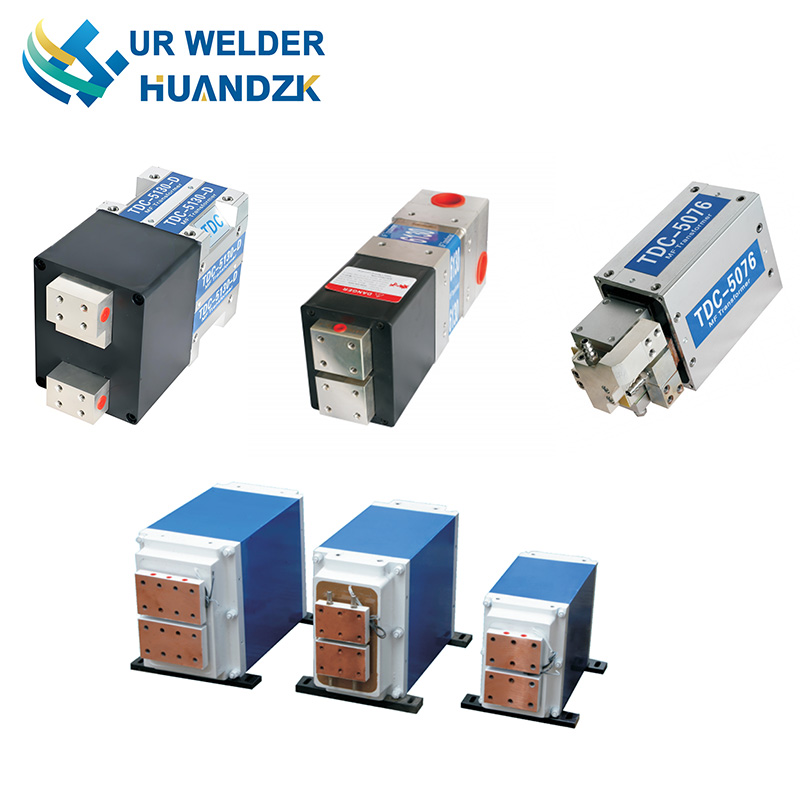

Typical products of DC transformers

High-frequency isolated DC transformers: suitable for occasions requiring electrical isolation.

Bidirectional DC transformers: support bidirectional energy transmission, suitable for energy storage systems and electric vehicle charging.

Multi-winding DC transformers: provide multiple outputs, suitable for complex systems.

Summary

MF dc welding transformers are one of the important applications of modern power electronics technology. Through high-frequency switching and transformer isolation technology, efficient conversion and transmission of DC voltage are achieved. Its high efficiency, high power density and electrical isolation make welding inverter transformer have broad application prospects in new energy, electric vehicles, data centers and other fields.
