High-Precision Spot Welding Transformer for Advanced Resistance Welding Systems

High-Precision Spot Welding Transformer for Advanced Resistance Welding Systems

Our spot welding transformer represents the ultimate in precision and efficiency within welding technology. Designed for peak performance and reliability, this transformer meets the rigorous demands of spot welding applications. With cutting-edge features such as five working frequencies and six control modes, it provides exceptional versatility and adaptability across a wide range of welding scenarios.

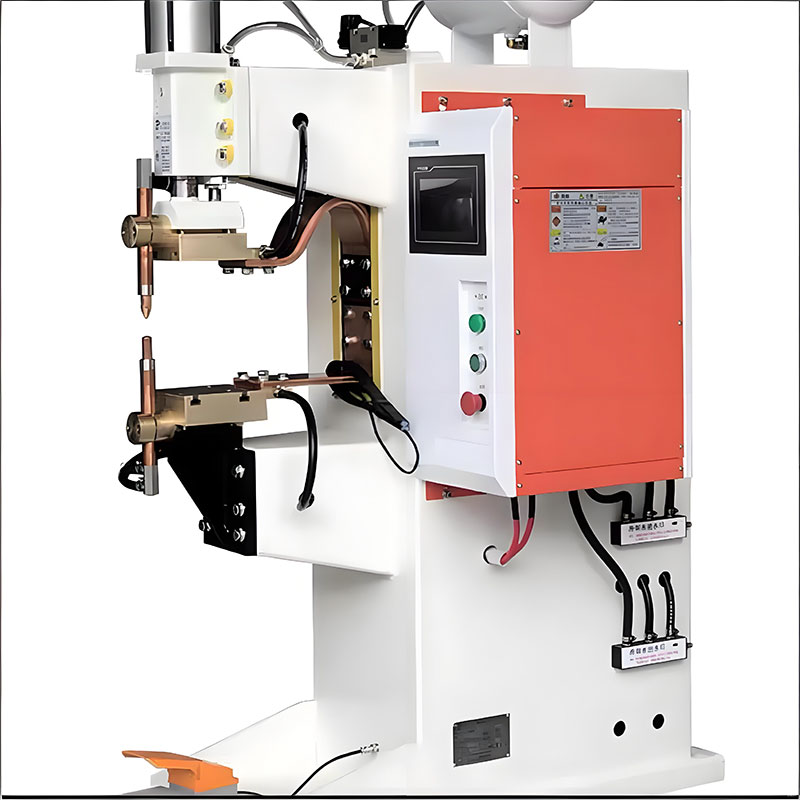

The welding inverter transformer integrated into our spot welding machine delivers outstanding welding stability, fast response speed, and exceptional welding consistency for modern industrial production. Designed for demanding resistance welding applications, the system ensures seamless operation, precise current control, and reliable welding performance across a wide range of metal joining processes.

With advanced inverter technology and intelligent digital control, the spot welding transformer provides stable welding output while reducing energy consumption and improving production efficiency. The compact transformer structure allows efficient heat management and higher welding accuracy, making it ideal for automated manufacturing lines, automotive welding systems, hardware fabrication, battery pack production, and metal processing industries.

The control accuracy of 0.2 ms guarantees optimal welding results, enabling precise management of welding current and welding time for every welding cycle. This high-speed control capability helps achieve uniform weld penetration, stable nugget formation, reduced welding spatter, and consistent weld strength. Even during high-volume continuous production, the system maintains reliable welding quality and operational stability.

Our advanced resistance welding equipment supports a variety of industrial welding applications, including spot welding, projection welding, seam welding, wire mesh welding, nut welding, battery tab welding, and precision metal welding. The welding inverter transformer ensures fast current response and stable power delivery, improving overall welding performance while extending electrode service life and reducing maintenance costs.

As one of the leading resistance welder manufacturers, Guangdong Ur Welder Co., Ltd. is committed to providing high-performance welding solutions that meet the evolving demands of global manufacturing industries. Our spot welding machine transformer combines durability, precision, and energy-saving performance to help manufacturers improve productivity and maintain superior welding quality.

The advanced MFDC resistance welding technology integrated into the welding system enhances welding efficiency while minimizing power loss and heat generation. Compared with conventional welding systems, the inverter spot welding transformer provides smoother current output, faster welding speed, and better process control for thin metals, coated materials, stainless steel, galvanized steel, and complex welding assemblies.

1. Integral mechanism design;

2. Linear guide design ensures welding accuracy and repeatability. Linear and sealed linear guide design reduces grease leakage and displacement, so that the welding head can be used in horizontal and vertical installation methods. 3. With pressure following mechanism, even under very low welding pressure, it can achieve rapid and accurate pressurization operation; minimum friction can make the welding head produce rapid feedback, so that deformation and sparks are minimized;

4. Core accessories use Misumi springs, Misumi bearings, Misumi guides, SMC cylinders or Airtac cylinders;

5. The power micro-trigger switch or photoelectric switch makes the welding power trigger stable, improving quality and productivity;

6. It can be equipped with a pressure sensor to ensure that the pressure is consistent in any case such as debugging or replacing electrodes;

7. It can be equipped with a displacement sensor to ensure that each welding is consistent;

8. The air compressor high-end welding head has a perfect cooling device
