In the field of automobile manufacturing, the requirements for welding quality, efficiency and stability are extremely stringent: the welding points of the car body need to withstand dynamic loads, and lightweight materials such as aluminum alloys pose new challenges to the welding process. Traditional spot welding machines often cause spatter, cold welding and other problems due to rough parameter control. The good quality welding machine automotive version equipped with Huandian IDP-620/IDP-820 high-frequency DC inverter power supply has three major technological breakthroughs to directly hit the pain points of the industry:
Fully independent intellectual property rights and core technology breakthroughs

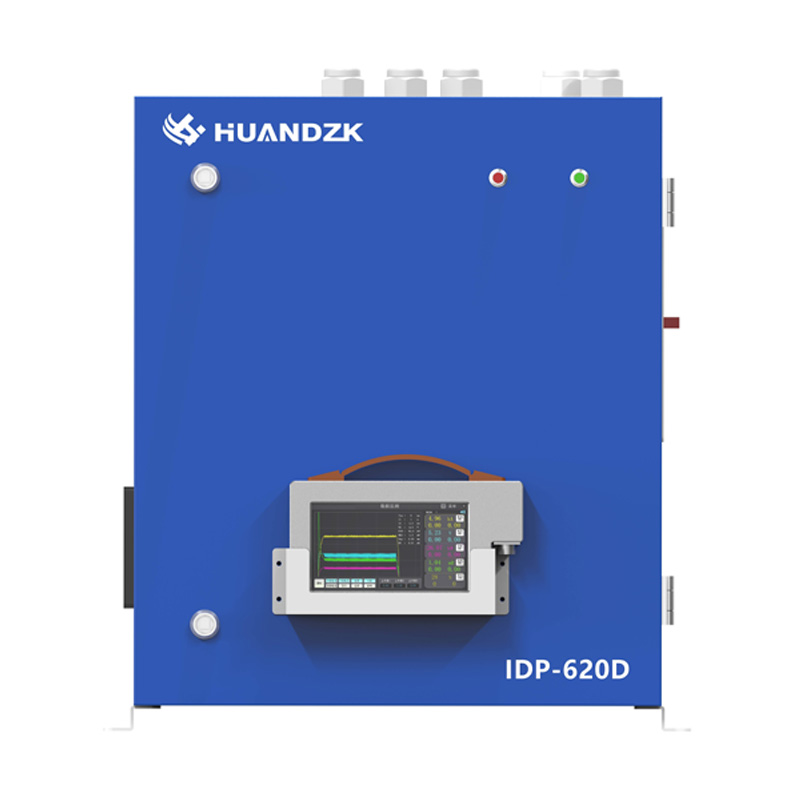

Huandian IDP-620/IDP-820 series resistance spot welding machines use independently developed DSP digital signal processing technology and high-frequency inverter power supply architecture. The core components are all imported brands, reaching the international first-line level in key indicators such as welding stability and current response speed. For example, IDP-620 supports 5 operating frequencies (1kHz-5kHz) and 6 control modes, which can accurately adapt to the welding needs of dissimilar materials such as galvanized sheets and high-strength steel for automobile bodies. The fluctuation rate of weld strength is ≤3%, which is much better than the industry average.
Intelligent welding quality control system
The power supply of the resistance spot welding machine integrates 8-channel real-time waveform monitoring function, which can synchronously display the real waveforms of current, voltage, power, resistance and other parameters, and supports pressure displacement interruption technology. When shunt, plate thickness deviation or electrode wear occurs during welding, the system automatically triggers the compensation mechanism to ensure the consistency of the weld nugget size. For example, when welding aluminum alloy door inner panels, IDP-820 reduces the spatter rate to below 0.5% and increases the yield rate to 99.8% through multi-stage pulse discharge control.
Industry 4.0 compatibility and scalability
In response to the needs of automated welding production lines in the automotive industry, the IDP series is equipped with industrial protocols such as ModBus TCP/IP, EtherNet/IP, and PROFINET, and supports seamless docking with mainstream robot systems such as Kuka and FANUC. the IDP series resistance spot welding machine power supply built-in 5 million sets of data storage libraries can trace the welding parameters throughout the life cycle, and cooperate with the welding group control system to achieve remote parameter synchronization and fault warning of multiple devices, and increase the single-line production capacity by more than 20%.
Difference 1: Ultra-high precision control and multi-stage discharge optimization
The IDP series resistance spot welding machine power supply adopts DSP+FPGA dual-core architecture, with a control accuracy of 0.2 milliseconds, supports up to 10 stages of welding discharge, and each stage can set the slow rise, slow fall and current/voltage parameters separately, effectively reducing spatter and improving the consistency of weld formation. Compared with the common 3-stage discharge or fixed parameter setting power supplies on the market, IDP series resistance spot welding machine power supply performs more stably in the welding of complex workpieces (such as high-strength steel + coated steel for car bodies).
Difference 2: 22 welding fault diagnosis + intelligent quality judgment
The IDP-620 / IDP-820 resistance spot welding machine power supply has built-in 22 welding abnormality monitoring, including current/voltage threshold, displacement, temperature rise, pressure, water cooling, secondary circuit, etc., and provides real-time alarm and automatic screening of bad welds to improve the controllability of welding quality. This is particularly important in the production of automotive safety parts (such as door reinforcements and chassis brackets), while most ordinary equipment lacks a systematic judgment and traceability mechanism.
Difference 3: Rich communication interfaces and group control capabilities
To meet the needs of automotive production line automation, the IDP series resistance spot welding machine power supply is equipped with industrial protocol interfaces such as EtherNet/IP, Profinet, Modbus TCP/IP, etc., which can seamlessly connect to PLC, robots and host computer systems. At the same time, the IDP series resistance spot welding machine power supply supports multi-machine networking group control and remote data real-time upload, which is convenient for centralized management and big data analysis, which is also one of the highlights that traditional spot welding equipment cannot match.
Difference 4: High adaptability and customization capabilities
The IDP-620 resistance spot welding machine power supply supports three-phase medium-frequency transformers, while the IDP-820 is suitable for higher current loads and can flexibly match various welding tongs, servo clamps, nut welding guns and other devices. According to customer needs, Huandian also provides special automotive industry version software and remote service systems to ensure rapid deployment and efficient maintenance.
